Description
Features
Deye smart EV Charger 22kW with smart tx
- Charging station power – 22kW three phase (configurable to 7kW single phase)
- Charger is controlled by the Deye inverter via LoRa communication
- Deye Smart Home IoT system included.
- Simply install the Deye Smart Transmitter (TX) to the inverter’s meter port to easily pair with Deye LoRa devices within 200m line of sight.
- Nominal voltage – 230 V
- Nominal current – Max. 32 A per-phase
- Communication – Wi-Fi, Bluetooth, LoRa
- Compatible with all common electric vehicles
- Cable Length 4.2m
- Suitable for wall mounting or drag and drop
- Can connect direct to the sub db if there is no Deye inverter.

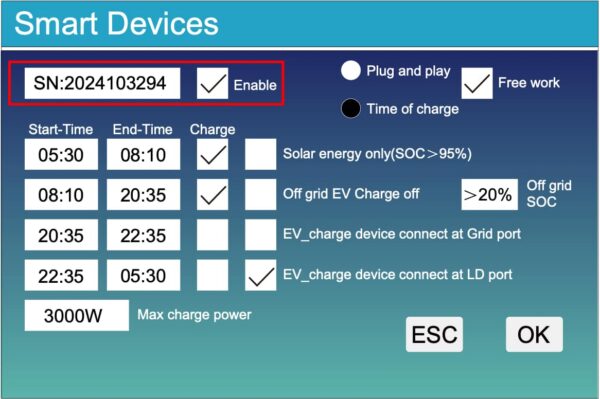

- Fully programmable scheduler allows charging at different time intervals
- Type A leakage & 6mA DC fault protection
IP66 rated for outdoor use
Auto charging via time, SOC or solar-only mode
Real-time power monitoring and control via Deye Cloud
Supports solar energy only
SPD Type II integrated
Start by schedule charging, charge after scanning, or plug and charge
Low latency
Long-range communication
Offline operation - The smart transmitter (TX) eliminates complex wiring requirements and streamlines installation. It is ideal for residential and commercial users looking to optimize their EV charging efficiency while maintaining full control over their energy usage.
- Operating temperature: -40 to +55°C
- Noise <25 dB
- Dimensions (W/H/D) – 104 / 264 / 57.5 mm
- Weight – 3,7 kg
- 5 Years Manufacturers Warranty
- Made in China
- Included models: SUN-EVSE22K01-EU-AC and SUN-SMART-TX01
- Conforms to standards: EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021 and more.
