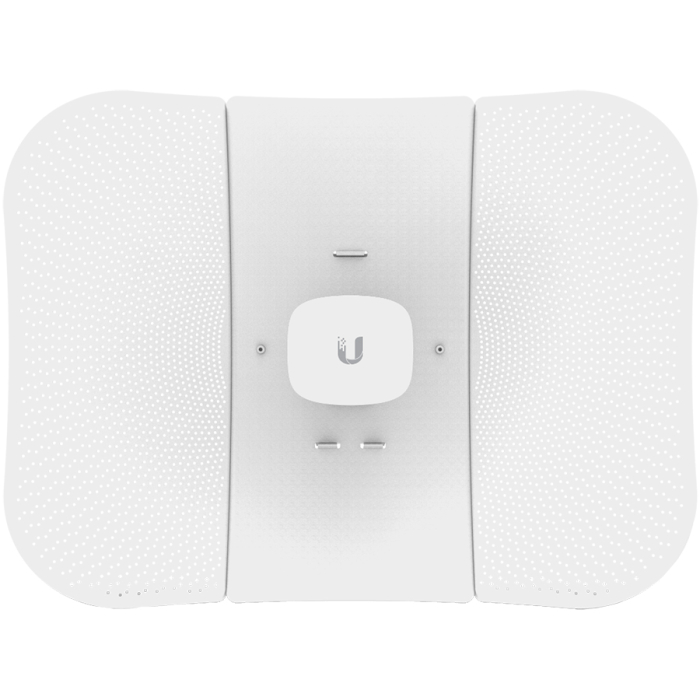

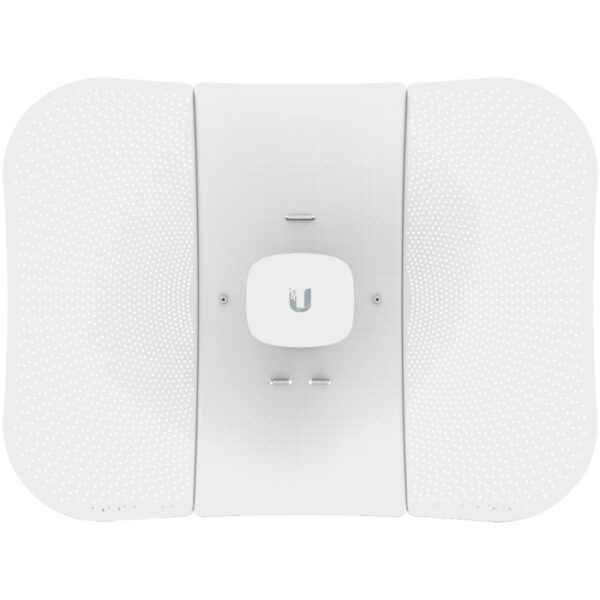

Ubiquiti UISP airMAX LiteBeam AC 5GHz 23dBi Radio

Description

Features

• Transmit your data to a data centre at distances of up to 15km
• Used to receive signal from a tower like a real smart city
• The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.
• This is the latest generation of airMAX® CPE (Customer Premises Equipment),
• LiteBeam can be used as a cost-effective WISP deployment in an airMAX ac
  Point‑to‑MultiPoint network.
• The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast
  and easy setup using your mobile device.
• The UNMS™ app provides instant accessibility to the airOS
  configuration interface and can be downloaded from the
  App Store (iOS) or Google Play™ (Android). UNMS allows you to
  set up, configure, and manage the LiteBeam 5AC Gen 2.

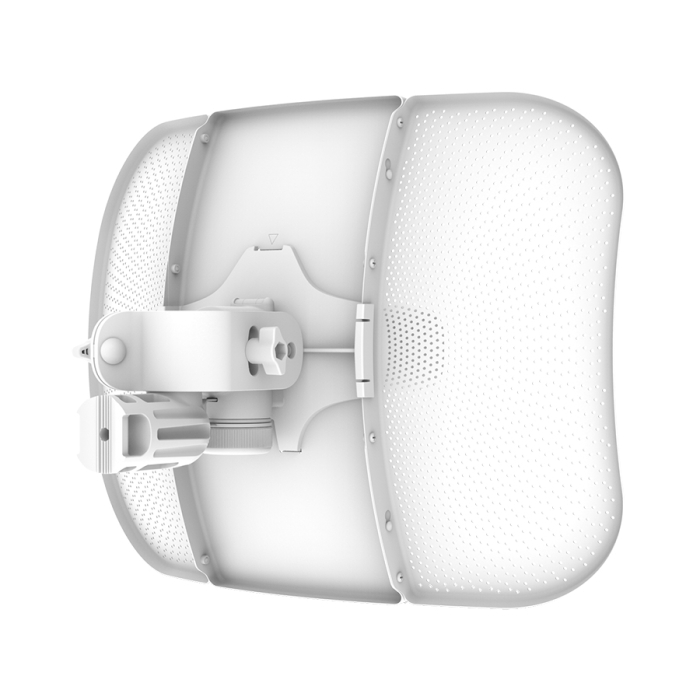

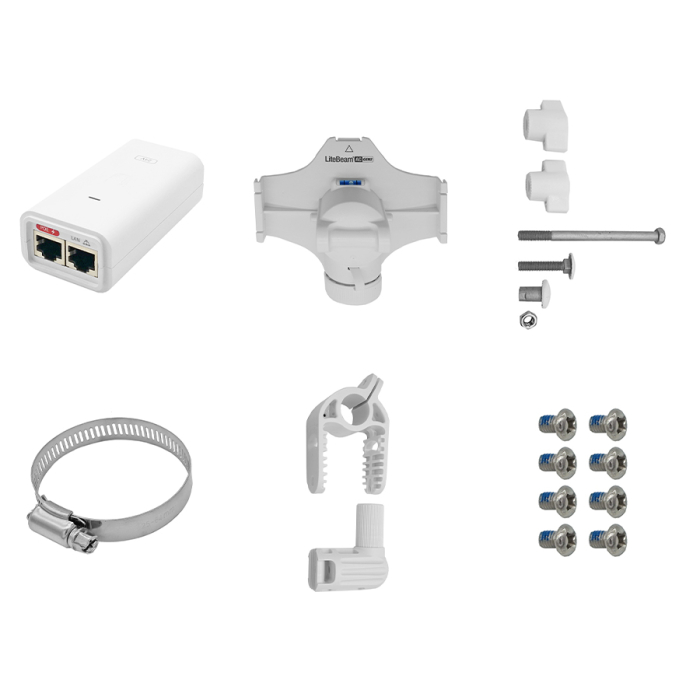

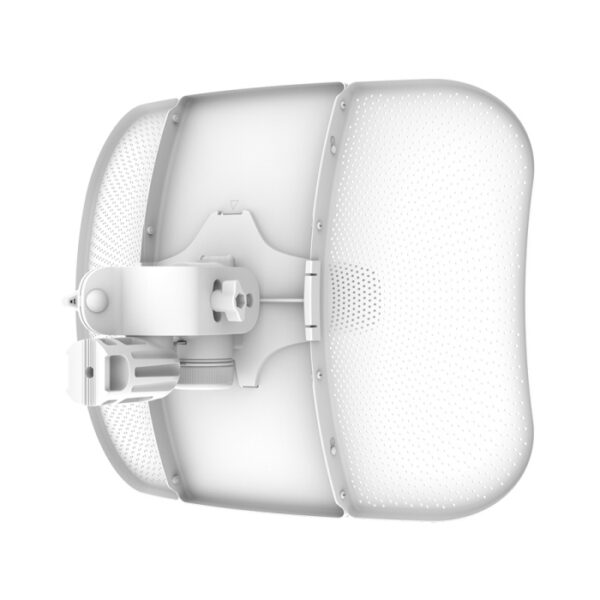

• Includes a robust mount with separate
  azimuth and elevation adjustments.
• Antenna Gain: 23dBi
  Beam-width: 15°
  Data Rate: 867Mbps
  Ethernet Ports: 1x 10/100/1000
  Hardware Button: Reset
  Max. Power Consumption: 7W
  Mounting: Pole-Mount
  Operating System: airOS
  Operating Temperature: -40°C to 70°C
  PoE Input: 24V Passive PoE
  PoE Output: None

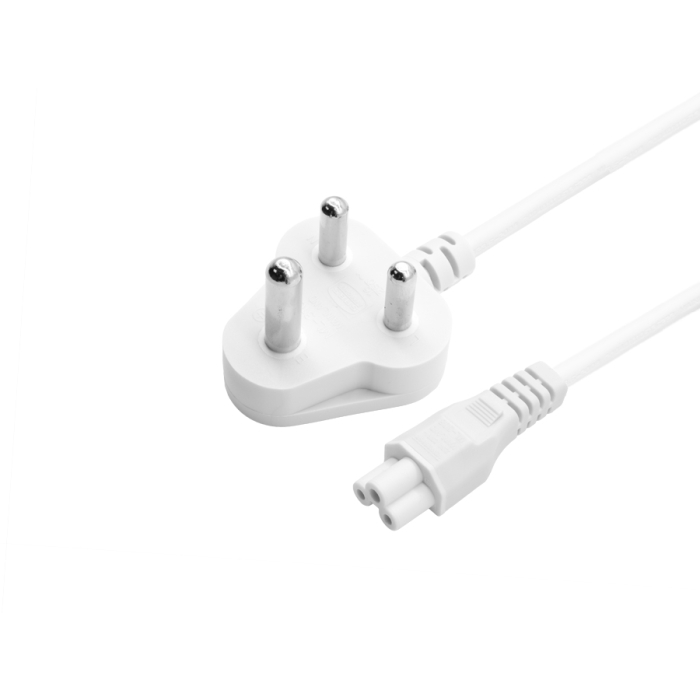

  Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
  Serial Interface: None
  SIM Slots: None
  Supported Voltage Range: 24V
  USB Ports: NoneDimensions: 358 x 271.95 x 272.5mm
  Weight: 980g
• Access Point PtMP airMAX Mixed
  Mode
  •airMAX ac Protocol Support
  Long-Range Point-to-Point (PtP)
  Link Mode
  •Selectable Channel Width
  •PtP: 10/20/30/40/50/60/80 MHz
  •PtMP: 10/20/30/40 MHz
  •Automatic Channel Selection
  •Transmit Power Control:
  Automatic/Manual
  •Automatic Distance Selection
  (ACK Timing)
  Strongest WPA2 Security
• Model LBE-5AC-GEN2
