Description
Features
- Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 250W and up to a maximum of 30W per port.
- The SPS-24G2S supports 4 working modes:
Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
VLAN: Enables Port Isolation on Ports 1-24.
QOS: Prioritises network bandwidth based on network usage history and analytics.
PoE: Automatically restarts a PoE-powered device if no data passes through the port for a set time. - 24x Gigabit 802.3af/at PoE RJ45 ports (ports 1 ~ 24)
- 2x Gigabit SFP Uplink Ports (ports 25 ~ 26)
- Backplane Bandwidth: 52 Gbps
MAC address capacity: 8K
Packet Forwarding Rate: 38.688Mbps - Ethernet Ports: 24x 10/100/1000
Hardware Button: VLAN; Extender; PoE; QOS
Max. Power Consumption: 15W

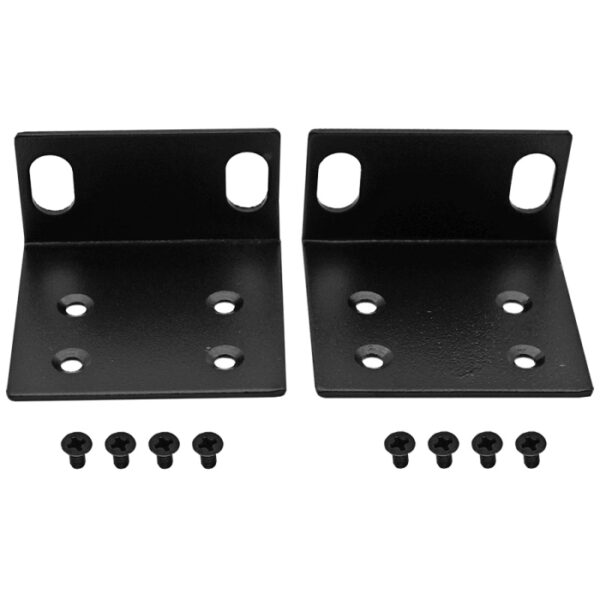

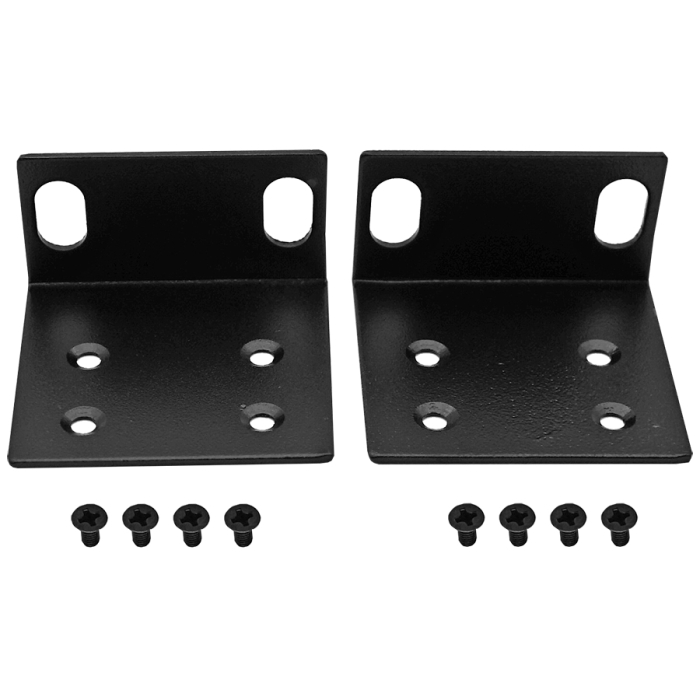

Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24

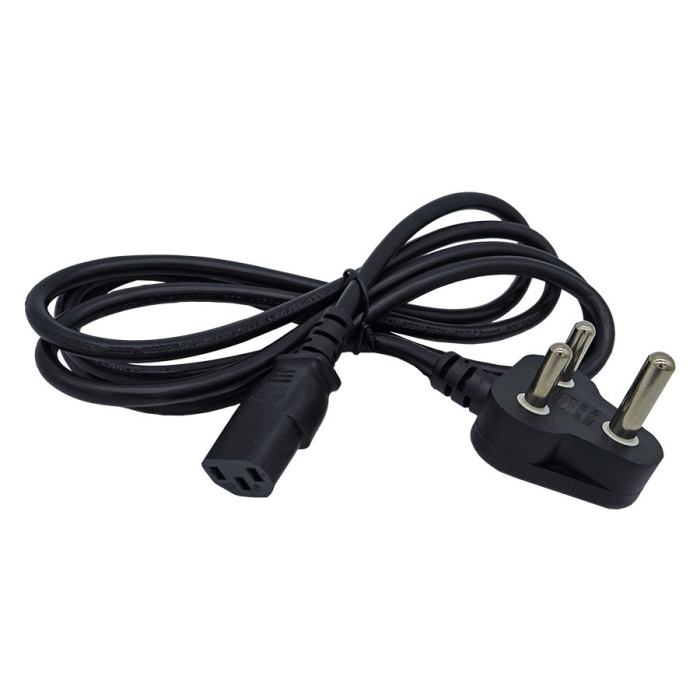

Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100V-240VDimensions: 440mm x 180mm x 44mm - Always use the included power supply.
Designed for indoor use only.
Not recommended for installations in harsh environments.
Ensure connected devices do not exceed the PoE budget. - Model SPS-24G2S
- 1 year warranty
